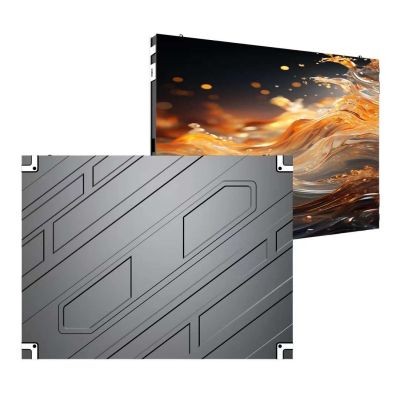

small pitch LED Displays in P1.25 to P3.076

Short Description:

Features of led small pitch screen:

1. High density, high contrast, high brightness (adjustable), high grayscale, high refresh;
2. Die-cast aluminum design, lightweight and ultra-thin, high precision
3. Seamless splicing of any size
4. Wide viewing angle, true and natural color, no seams, no color difference
5. No noise, low power consumption, low EMI, long life
6. Point-by-point brightness and chromaticity correction

INQUIRY

Details

Model	P1.25	P1.53	P1.667	P1.86	P2	P2.5
Pixel Pitch(mm)	1.25	1.53	1.667	1.86	2	2.5
Pixel Matrix Per Sq.m	640000	422500	360000	288906	250000	160000
Pixel Configuration	SMD1010	SMD1212	SMD1212	SMD1515	SMD1515	SMD2121
Brightness (nits)	500-900	500-900	500-900	500-900	500-900	500-900
Scan	1/64	1/52	1/40	1/32	1/24	1/20
Module Dimension	320x160mm	320x160mm	320x160mm	320x160mm	320x160mm	320x160mm
Cabinet Dimension	640x640mm / 640×480mm	640x640mm / 640×480mm	640x640mm / 640×480mm	640x640mm / 640×480mm	640x640mm / 640×480mm	640x640mm / 640×480mm
Cabinet Resolution	512x512/512x384	416x416/416x312	384x384/384x288	344x344/344x258	320x320/320x240	256x256/256x192
Cabinet Material	Die-casting	Die casting	Die casting	Die casting	Die casting	Die casting
Cabinet Weight	8kg/7kg	8kg/7kg	8kg/7kg	8kg/7kg	8kg/7kg	8kg/7kg
Power Con. (Max/Avg)	600 / 200 w/sq.m	600 / 200 w/sq.m	600 / 200 w/sq.m	580 / 180 w/sq.m	580 / 180 w/sq.m	580 / 180 w/sq.m
Service Access	Front	Front	Front	Front	Front	Front
Refresh Rate (HZ)	≥3840	≥3840	≥3840	≥3840	≥3840	≥3840
Grey Scale (bit)	14	14	14	14	14	14
Viewing Angle (H/V)	160 / 160	160 / 160	160 / 160	160 / 160	160 / 160	160 / 160
IP Rate	IP45	IP45	IP45	IP45	IP45	IP45
Operation Temperature	-20° ~ 60°	-20° ~ 60°	-20° ~ 60°	-20° ~ 60°	-20° ~ 60°	-20° ~ 60°
Input Voltage (AC)	100V or 240V	100V or 240V	100V or 240V	100V or 240V	100V or 240V	100V or 240V

Solution features:

1. Wide viewing angle, high contrast ratio 5000:1), high brightness (adjustable), high grayscale, high refresh, soft image, vivid display image;

2. No noise, low power consumption, low EMI, long life;

3. 16bit broadcast-level grayscale processing, 3200HZ refresh rate;

4. Point-by-point brightness and chromaticity correction to maintain the low-gray details and color reproduction of the image;

5. The module is fixed by strong magnetic attraction and can be maintained without any tools;

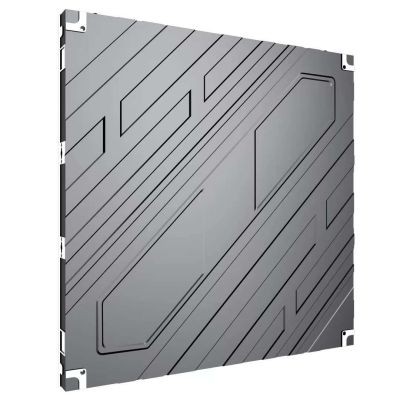

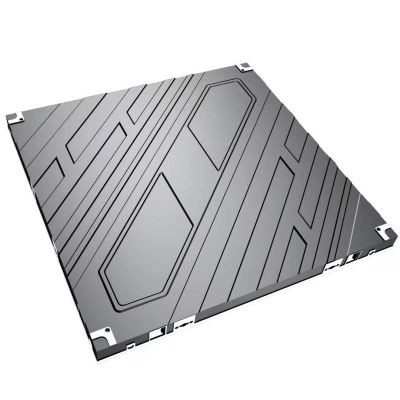

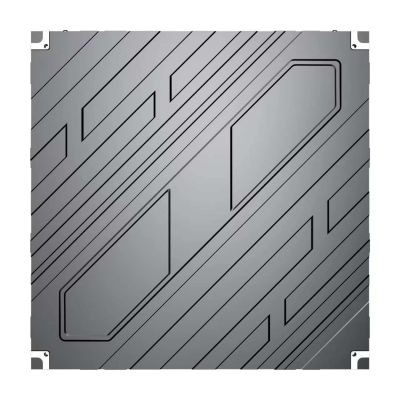

6. Die-casting aluminum structure box body realizes high-precision flat and seamless splicing and good heat dissipation;

7. No fan design, keep quiet;

8. The box is light and thin, occupies a small space, and is easy to transport, load and unload;

9. Connect to professional video splicing processing system, support multi-signal high-fidelity synchronous processor display;

10. The boxes are connected by a special buckle structure, no other tools are needed, and the installation and disassembly are convenient and quick.

Application Range:

Medical system

Command system

Transportation system

Broadcasting system

Securities system

Perform system

Network system

Monitoring system

Command and Control Center

Power dispatch, railway dispatch, water conservancy, etc.

Control Command Center

Public security command, traffic command, military exercise command, etc.

Surveillance Security Center

Communication service monitoring, airport monitoring, highways, etc.

Conference Video Center

Meeting room, conference center, network video conference, etc.

information Center

Weather information broadcast, medical information release, etc.

Demo center

Exhibition hall, education demonstration center, etc.

Studio center

Cinemas, TV studios, etc.
