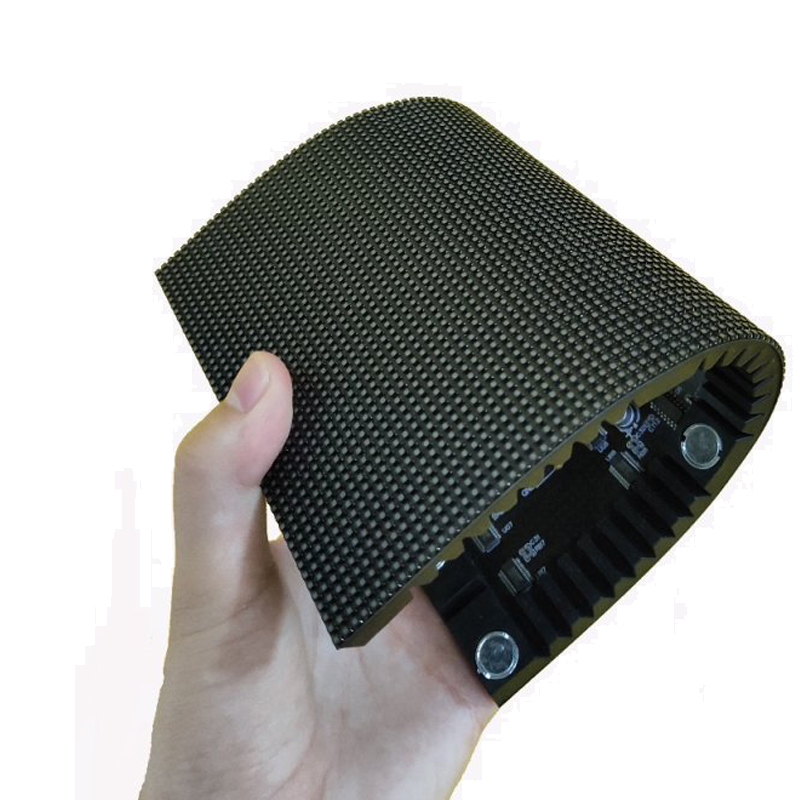

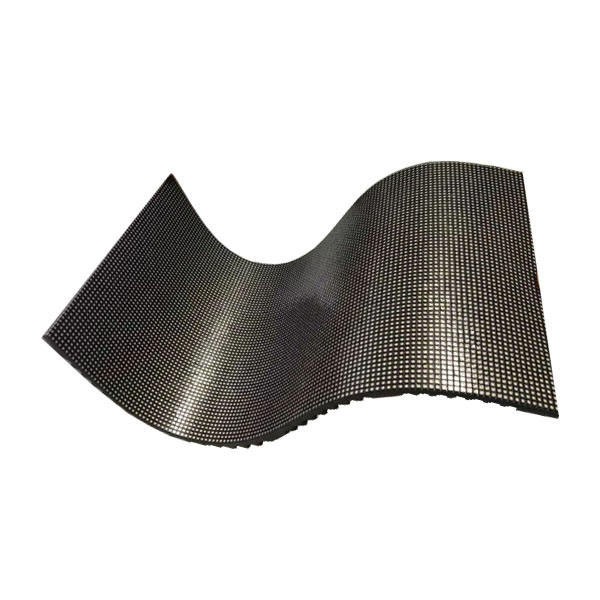

Flexible LED Modules for special shapes

Short Description:

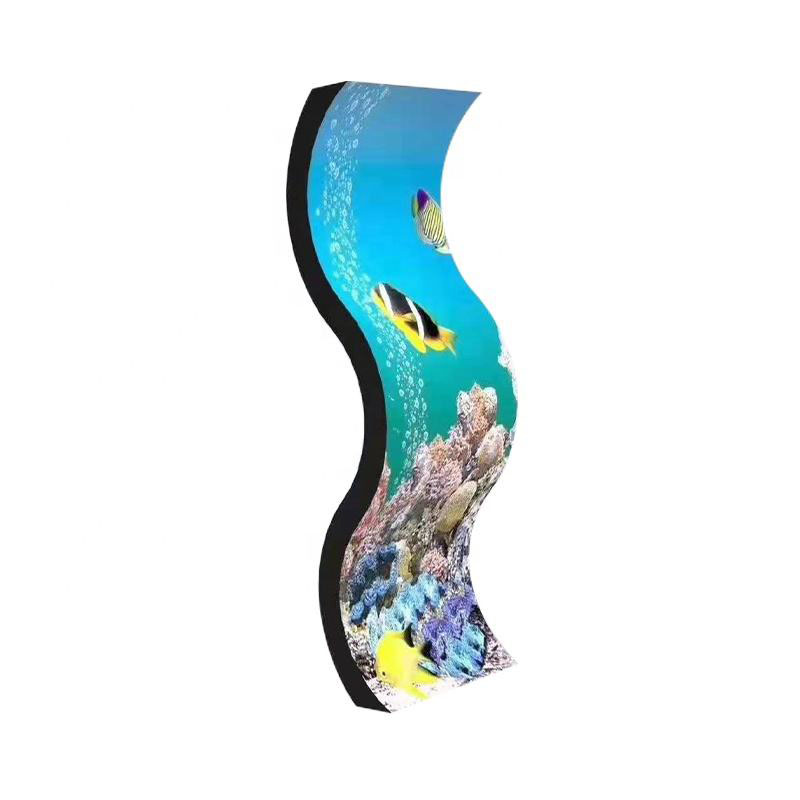

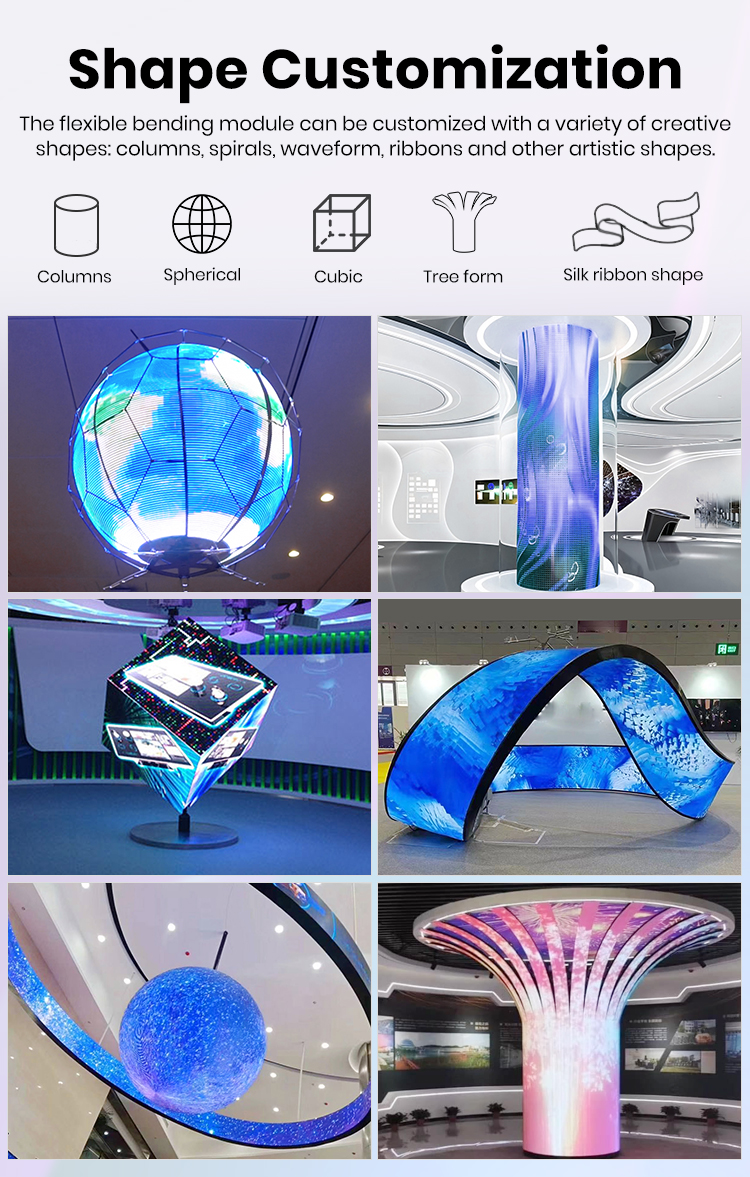

1. The flexible LED display can be installed on any shapes, which is suitable for creative designs;

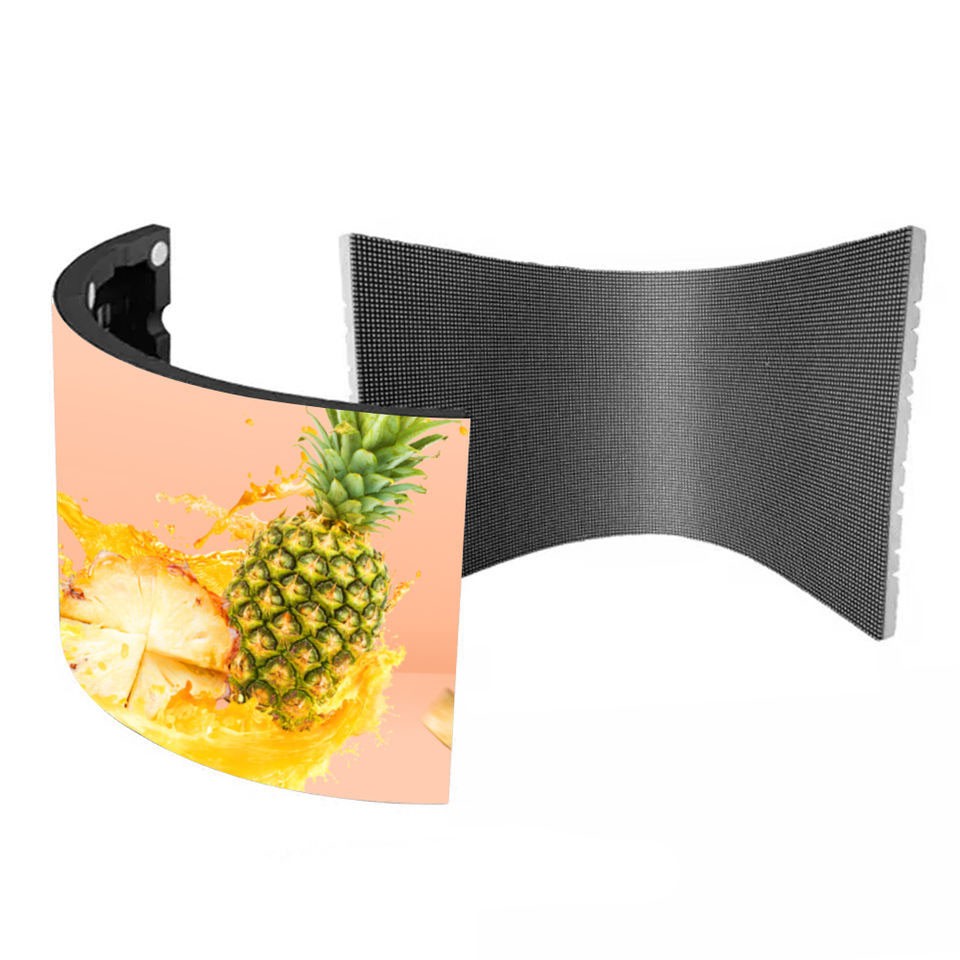

2. It is suitable for display on curved struture such as stage backgrounds, exhibition halls, and indoor meeting rooms;
3. For the installation of the flexible LED display, the on-site installation structure should be done well, and the strong magnet adsorption installation is adopted, which is directly adsorbed, which is convenient for installation and maintenance. And the security and stabilit

INQUIRY

Details

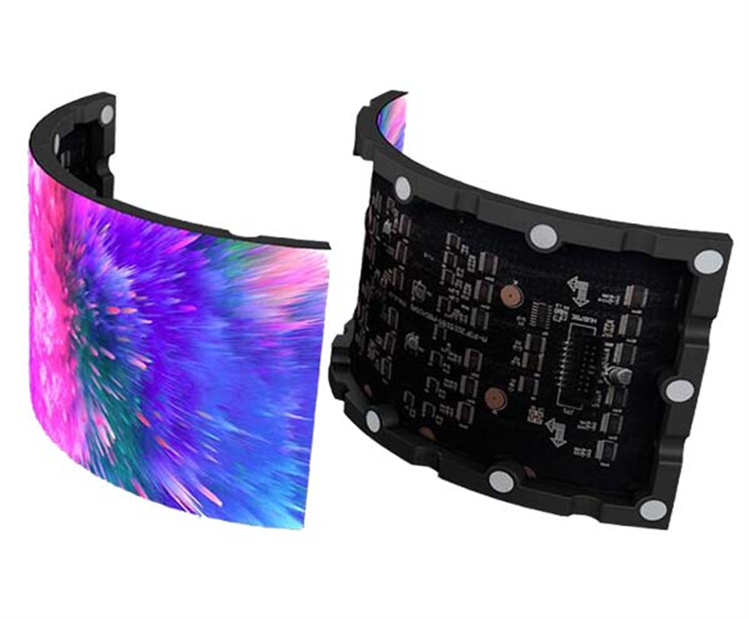

Compared with the traditional PCB material, it has higher hardness. The flexible FPC circuit board made of flexible insulating base material has high strength resistance to compression and distortion, and can better solve various installation difficulties of "corners".

1. Most of the installation methods of LED flexible modules are based on magnetic column suction, which is convenient and quick to install, and is also easy to shape. Quick butt joint connection, firm and reliable, saves you "prehistoric power".

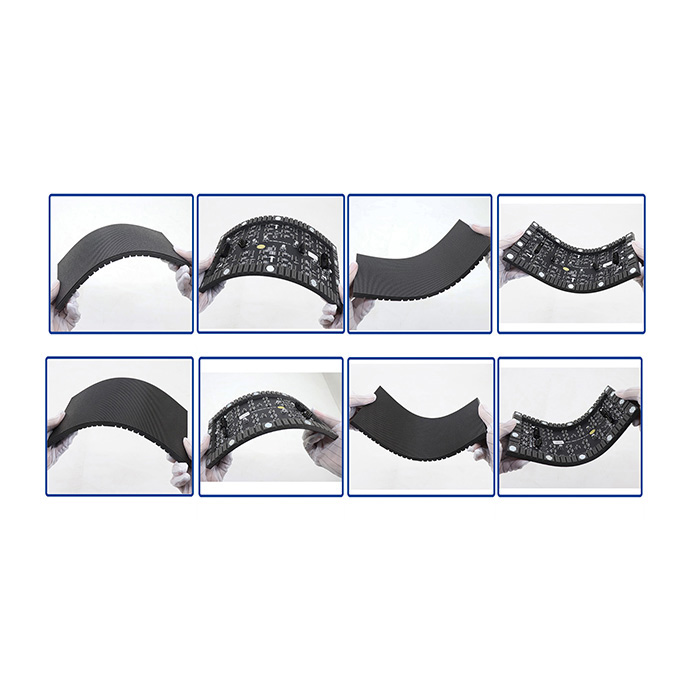

2. It has good ductility and can be shaped arbitrarily. Among them, the cylindrical screen has high brush performance, and can be hoisted, fabricated, hung, etc., and can meet the requirements of live sound to the greatest extent. Using advanced digital video processing, technology distributed scanning, 360-degree high-definition display, modular design, constant current static drive, high-brightness and true-color output, the picture is clear and jitter-free; it can also realize multi-screen soft modules, which can be connected to the main control Computer, there are three large ring-shaped LED display screens on the appearance of the cylinder, which can play images synchronously. No matter standing at any angle of the display, you can enjoy three identical and lifelike images.

3. High quality, single-point maintenance can be realized, and maintenance cost is low; high brightness, low dead light rate, energy saving and power saving; seamless splicing, can control the splicing error between modules within plus or minus 0.1mm, and can be used according to It can be made into any shape according to the needs of users; the flatness is good, it is made of silica gel, and the hand feels soft and there is no protrusion when it is passed by the finger; it supports real-time broadcast, and it uses DVI, HDMI, 3G/HD/SD three-speed SDI high-definition display mode, which is suitable for TV recording programs, Indoor places such as VCD or DVD and on-site live broadcasts; the circuit board is stable, and the circuit board adopts wave soldering process, with a green oil oxygen barrier layer, which prevents the line from being wet and oxidized, and improves the service life.

Specification	P2	P2.5	P2.5	P3	P4	P5
Pixel Pitch	2mm	2.5	2.5mm	3mm	4mm	5mm
Module Resolution	128×64	128×64mm	64×64	64×64	64*32	64*32
Pixel Configuration	1R1G1B (3 in 1)	1R1G1B (3 in 1)	1R1G1B (3 in 1)	1R1G1B (3 in 1)	1R1G1B (3 in 1)	1R1G1B (3 in 1)
Pixel Density	250000Dots/m2	160000 Dots/m2	160000 Dots/m2	111111Dots/m2	62500 Dots/m2	40000 Dots/m2
Module Size	256×128mm	320×160mm	160×160mm	192*192mm	256*128mm	320*160mm
Brightness Intensity（cd/m2）	≥900	≥900	≥900	≥900	≥900	≥900
Life Span	50.000H	50.000H	50.000H	50.000H	50.000H	50.000H
Working Temperature	-20- +60℃	-20- +60℃	-20- +60℃	-20- +60℃	-20- +60℃	-20- +60℃
Working Humidity	10%-95%RH	10%-95%RH	10%-95%RH	10%-95%RH	10%-95%RH	10%-95%RH
Warranty	2 Years	2 Years	2 Years	2 Years	2 Years	2 Years
Module price-KN-light(USD/pcs)	32.5	35.5	18	19.5	11	10
Module price-Nationstar( USD /pcs)	52	42	21	24.5	13.5	12.5
Screen price-Kn-light( USD /m2)	1430	1032	876	858	672	526
Screen price-Nationstar (USD /m2)	1922	1156	970	992	734	572
