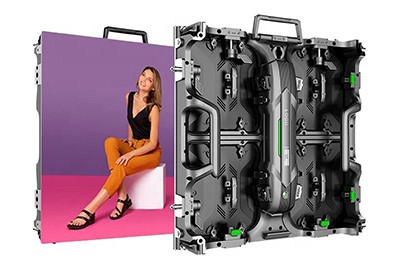

FK Series Rental LED Displays with 500mm*500mm 500mm*1000mm

FK Series Rental LED Displays with 500mm500mm 500mm1000mm

Short Description:

1. Ultra -thin, weight is only 7.5kg;
2. Maintenance in front of the module is suitable for various installation environments to improve operating efficiency.

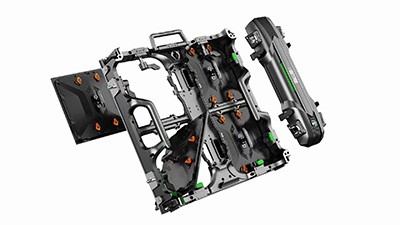

3. The box modular design is faster for maintenance.
4, 45 degrees splicingedge design, can be used for straight angles.
5. GOB process available if needs, waterproof and anti collision.
6, high definition display, the picture quality is delicate.
7, high quality lamp , the display effect is excellent.
8. High intensity fast lock de

INQUIRY

Details

Product name	Full color SMD Led video wall screen P2.6 P2.9 P3.91 P4.81 Indoor Outdoor Rental Stage Church Concert Event LED Wall Display
Custom Pixel	P2.97 P3.91 P4.81 For Choice

Indoor Spec	2.6mm	2.97mm	3.91mm
LED Configuration	SMD1515	SMD2121	SMD2121
Pixel Density/sqm	147456 dots	112896 dots	65536dots
Module Size/mm	250x 250	250x 250	250x 250

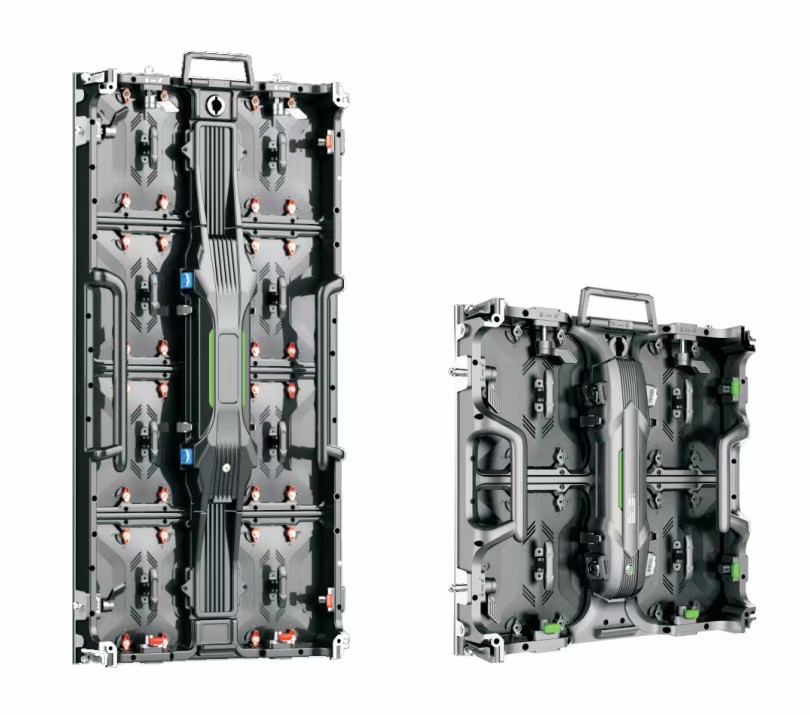

Cabinet Size	500x500mm 500x1000mm	500x500mm 500x1000mm	500x500mm 500x1000mm
Cabinet Resolution	192x 192dots	168x 168 dots	128xd128ots
Cabinet Weight	12.5Kg	12.5Kg	12.5Kg
IP Rating	IP31	IP31	IP31
Brightness /sqm	800- -1200 nits	800- -1200 nits	800- -1200 nits
View Angle/'	160"1 140(HM)	160'1 140"(HN)	160'1 140"(HN)
Gray Scale/bit	16 bit	16 bit	16 bit
Max. Power ConsumptionW	640 W/sqm	640 W/sqm	640 W/sqm
Ave. Power ConsumptionW	192 W/sqm	192 W/sqm	192 W/sqm
Refresh Frequency/Hz	3840 Hz	3840 Hz	3840 Hz
Operating Power	AC 96~242V 50/60Hz
Operating Temperature	-40"C~+60"C
Operating Humidity	10~90%RH
Operating Life	10000Hours

Features:
1. Ultra -thin: single box body 7.5kg,
2. Super high refresh rate: It can ensure that high -definition cameras and cameras can capture high -definition and delicate display screens;
3. Low bright and high gray performance: In the case of low brightness, the grayscale is uniform, and the consistency is good;
4. High contrast: mask design, black SMD, no reflective surface, large viewing perspective, good display effect;
5. High uniformity of brightness and color: use high -quality selection of the same batch of light emitting devices to ensure higher uniformity;
6. Adopt advanced hidden solutions: thoroughly eliminate the phenomenon of darkness and ghosts;
7. High reliability and high life: adopt direct insertion rotation design to simplify the connection of the box in the box, effectively reduce the problem of adverse connection and reduce signal attenuation and interference, high -quality luminous devices to ensure high reliability and high life;

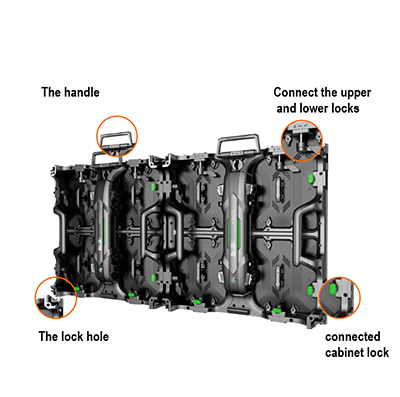

8. Seamless and fast stitching, simple maintenance and maintenance: use the lock structure to make the stitching operation simple and convenient, and no tools are required;
9. No noise: mute design, air -conditioning, fan -free installation, eliminating noise, reducing power consumption, saving power and saving;
10. Real -time error detection function: You can independently detect whether each LED is open without an additional external original original, and it can eliminate problems such as cross.
