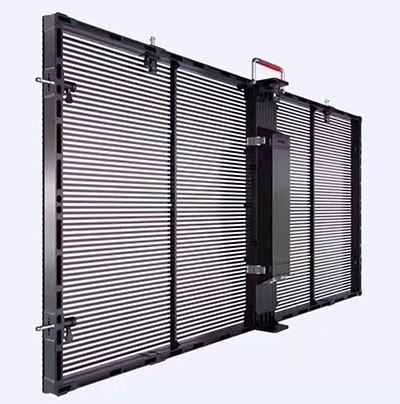

Transparent LED Screens Indoor type for shops & shows

Short Description:

High transparency
From 50% to 90% transparency rate could keep  the internal natural lighting and viewing.
Light weight
5.5kg/cabinets light weight easy to install and disemble, save  transpartation cost.
Thin thickness
Ultra-thin Module with mask thickness is 3mm, Cabinet thickness is 20mm, power  box is 60mm only.

INQUIRY

Details

Specifications

Pixel Pitch	3.91-7.81mm	7.81-7.81mm	10.42-10.42 mm
LED Type	SMD1921	SMD1921	SMD2727
Module Size	500mm*125mm	500mm*125mm	500mm*125mm
Pixel Density	32768 pixels/m2	16384 pixels/m2	9216 pixels/m2
Refresh rate	≥1920HZ
Gray Level	16 Bit
Brightness	≥3000cd/m2	≥2000cd/m2	≥5000cd/m2
Driving Method	1/8	1/8	1/2
Viewing Angle	H: 110° , V:110°
Cabinet Resolution	256*64 Dots	128*64 Dots	96*96 Dots
Material	Die-casting
Cabinet Size	1000mm*500 mm	1000mm*500 mm	1000mm*500 mm
Cabinet Weight	7 Kg	7 Kg	7 Kg
IP Rating	IP43
Avg.Power Consumption	400W/Cabinet	300W/Cabinet	400W/Cabinet
Control System	LINSN & NOVASTAR
Operation System	Windows 98/me/2000 NT/XP/Win7
Temperature-Operating	-20℃~60℃
Humidity-Operating	10% ~ 90% RH
Input Voltage	110 ~ 220 VAC, 50~60HZ
Defect Rate	≤0.0001
MTBF/Life span	35,000 Hrs/ 100,000 Hrs
