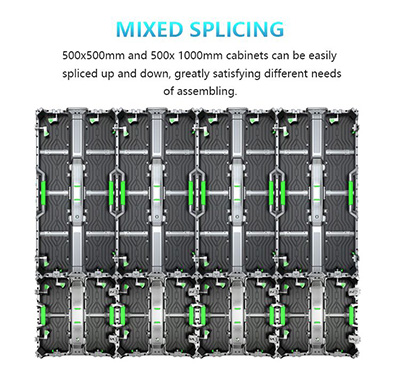

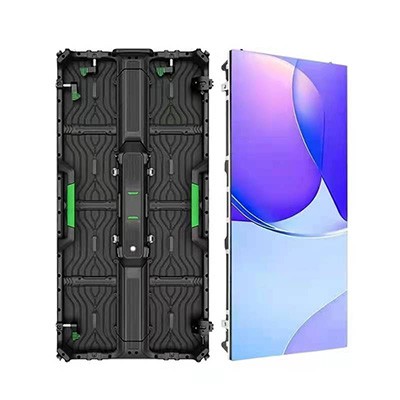

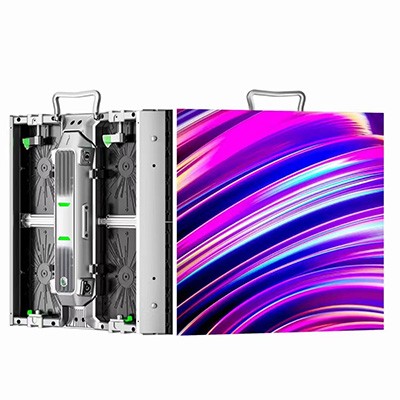

FW series indoor outdoor both Rental LED Displays with 500mm*500mm & 500mm*1000mm

FW series indoor outdoor both Rental LED Displays with 500mm500mm & 500mm1000mm

Short Description:

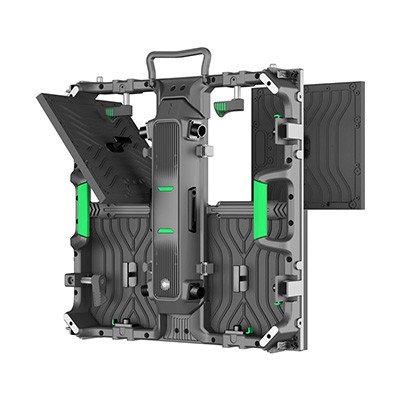

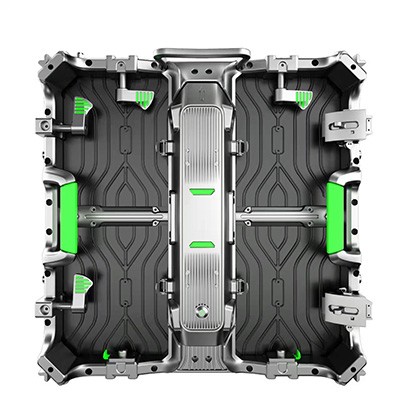

High-precision aluminum die-casting structure
For indoor and outdoor rental displays, compatible with P1.953 P2.604, P2.976, P3.91, P4.81, P5.95, easy for screen upgrades
with 4 quick locks, 5s quick installation
Various shapes can be built arbitrarily to meet the stage design, curved, rectangular

INQUIRY

Details

Model	P1.5625	P1.95	P2.5	P2.604	P2.976	P3.91
pitch	1.5625mm	1.95mm	2.5mm	2.604mm	2.976mm	3.91mm
LED lamp	SMD1212	SMD1515	SMD2121/2020	SMD2121/2020	SMD1515	SMD2020
Density(dots/㎡)	409600	262144	160000	147456	112896	65536
Cabinet resolution	320 ×320	256×256	200×200	192 ×192	168 ×168	128 ×128
Cabinet weight(KG)	7.8	7.8	7.5	7.5	7.5	7.5
Scan	1/32	1/32	1/25	1/32	1/21	1/16
Viewing angle	H:140°, V:120°	H:140°, V:120°	H:140°, V:120°	H:140°, V:120°	H:140°, V:120°	H:140°, V:120°
Refresh rate	≥3840hz	≥3840hz	≥3840hz	≥3840hz	≥3840hz	≥3840hz
IC	MBI5153	MBI5153	ICN2153	ICN2153	ICN2153	ICN2153
Brightness	700-1200cd/㎡
Power consumption	max .650W/min. 260W
IP protection	IP30
Cabinet size	500mm×500mm
Grey level	14-16bit
Input voltage	AC220V/50Hz
MTBF	10000H
Lifespan	≥100000H
Working Temp.	-20℃～+45℃
Working Humidity	10%～60%RH
